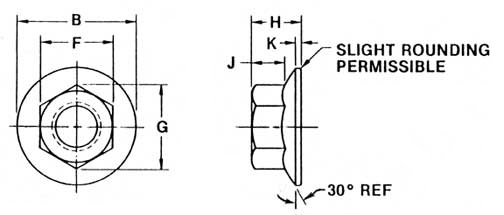

FLANGE NUTS
Nominal Diameter & Thread Size
F
G
B
H
J
K
ACROSS
ACROSS
FLANGE
NUT
WRENCHING
FLANGE
FLATS
CORNERS
DIAMETER
THICKNESS
LENGTH
THK
max
min
max
min
max
min
max
min
min
min
6
0.1380
0.312
0.302
0.361
0.342
0.422
0.406
0.171
0.156
0.10
0.02
8
0.1640
0.344
0.334
0.397
0.381
0.469
0.452
0.203
0.187
0.13
0.02
10
0.1900
0.375
0.365
0.433
0.416
0.500
0.480
0.219
0.203
0.13
0.03
12
0.2160
0.438
0.428
0.505
0.488
0.594
0.574
0.236
0.222
0.14
0.04
1/4
0.2500
0.438
0.428
0.505
0.488
0.594
0.574
0.236
0.222
0.14
0.04
5/16
0.3125
0.500
0.489
0.577
0.557
0.680
0.660
0.283
0.268
0.17
0.04
3/8
0.3750
0.562
0.551
0.650
0.628
0.750
0.728
0.347
0.330
0.23
0.00
7/16
0.4375
0.688
0.675
0.794
0.768
0.937
0.910
0.395
0.375
0.26
0.04
1/2
0.5000
0.750
0.736
0.866
0.840
1.031
1.000
0.458
0.437
0.31
0.05
9/16
0.5625
0.875
0.861
1.010
0.982
1.188
1.155
0.506
0.483
0.35
0.05
5/8
0.6250
0.938
0.922
1.083
1.051
1.281
1.248
0.569
0.545
0.40
0.05
3/4
0.7500
1.125
1.088
1.299
1.240
1.500
1.460
0.675
0.627
0.46
0.06



FLANGE NUTS
Nominal Diameter & Thread Size
F
G
B
H
J
K
ACROSS
FLATS
ACROSS
CORNERS
FLANGE
DIAMETER
NUT
THICKNESS
WRENCHING
LENGTH
FLANGE
THK
max
min
max
min
max
min
max
min
min
min
1/4
0.2500
0.438
0.428
0.505
0.488
0.728
0.700
0.312
0.281
0.15
0.04
5/16
0.3125
0.500
0.489
0.577
0.557
0.820
0.790
0.375
0.343
0.20
0.04
3/8
0.3750
0.562
0.551
0.650
0.628
0.915
0.885
0.406
0.390
0.24
0.04
7/16
0.4375
0.688
0.675
0.794
0.768
1.131
1.100
0.468
0.437
0.26
0.04
1/2
0.5000
0.750
0.736
0.866
0.840
1.205
1.175
0.515
0.485
0.29
0.06
9/16
0.5625
0.875
0.861
1.010
0.982
1.300
1.260
0.578
0.546
0.37
0.06
5/8
0.6250
0.938
0.922
1.083
1.051
1.360
1.280
0.640
0.600
0.42
0.06



Flange nuts are available in both UNC-2B coarse and UNF-2B fine thread series. They can be suppleid in a variety of materials ie; Grade 2 steel, stainless steel, brass, bronze and aluminum alloys. When locking is required, flange nuts can also be purchased with reverse serrations under the flange.
